Product Overvie

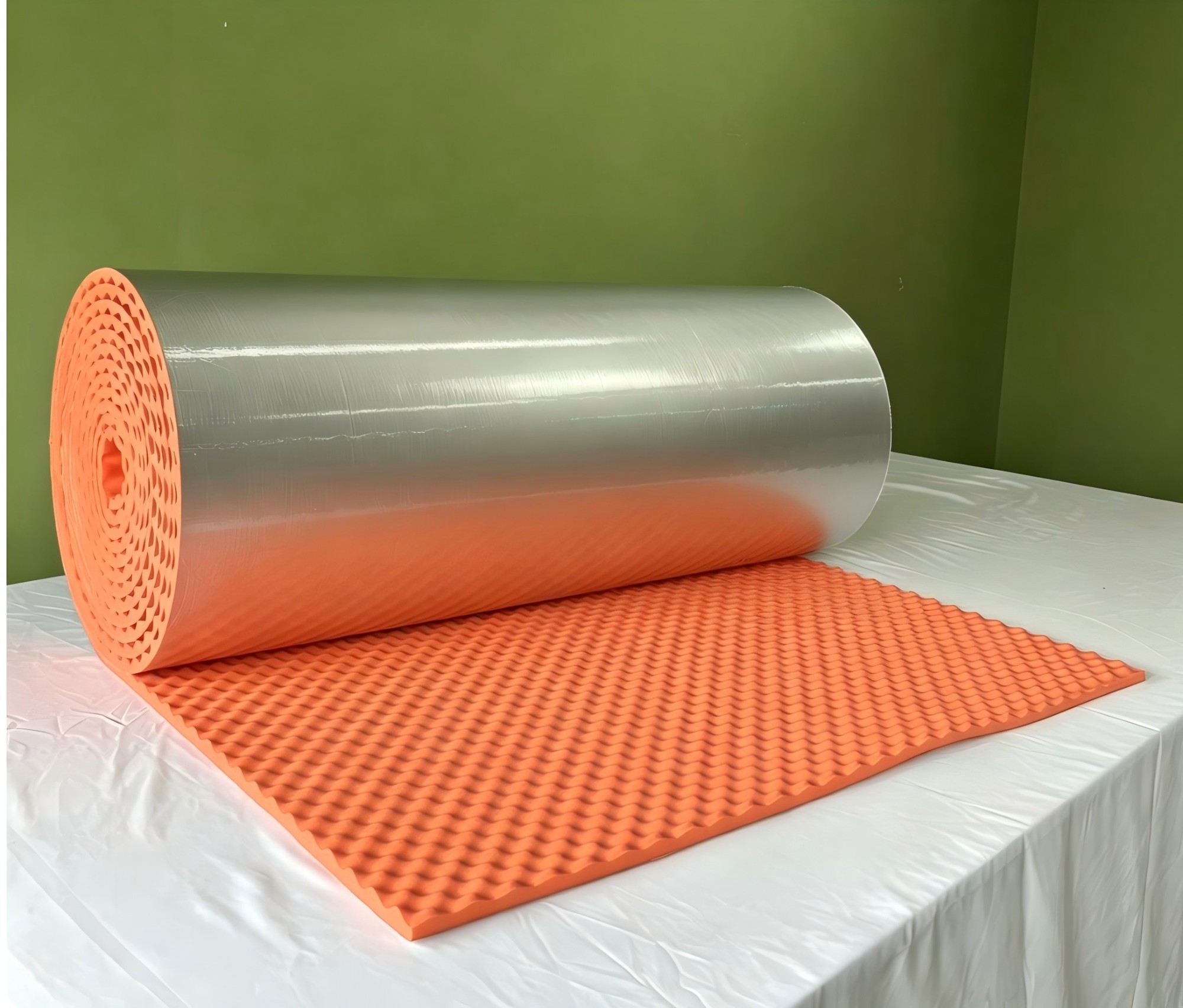

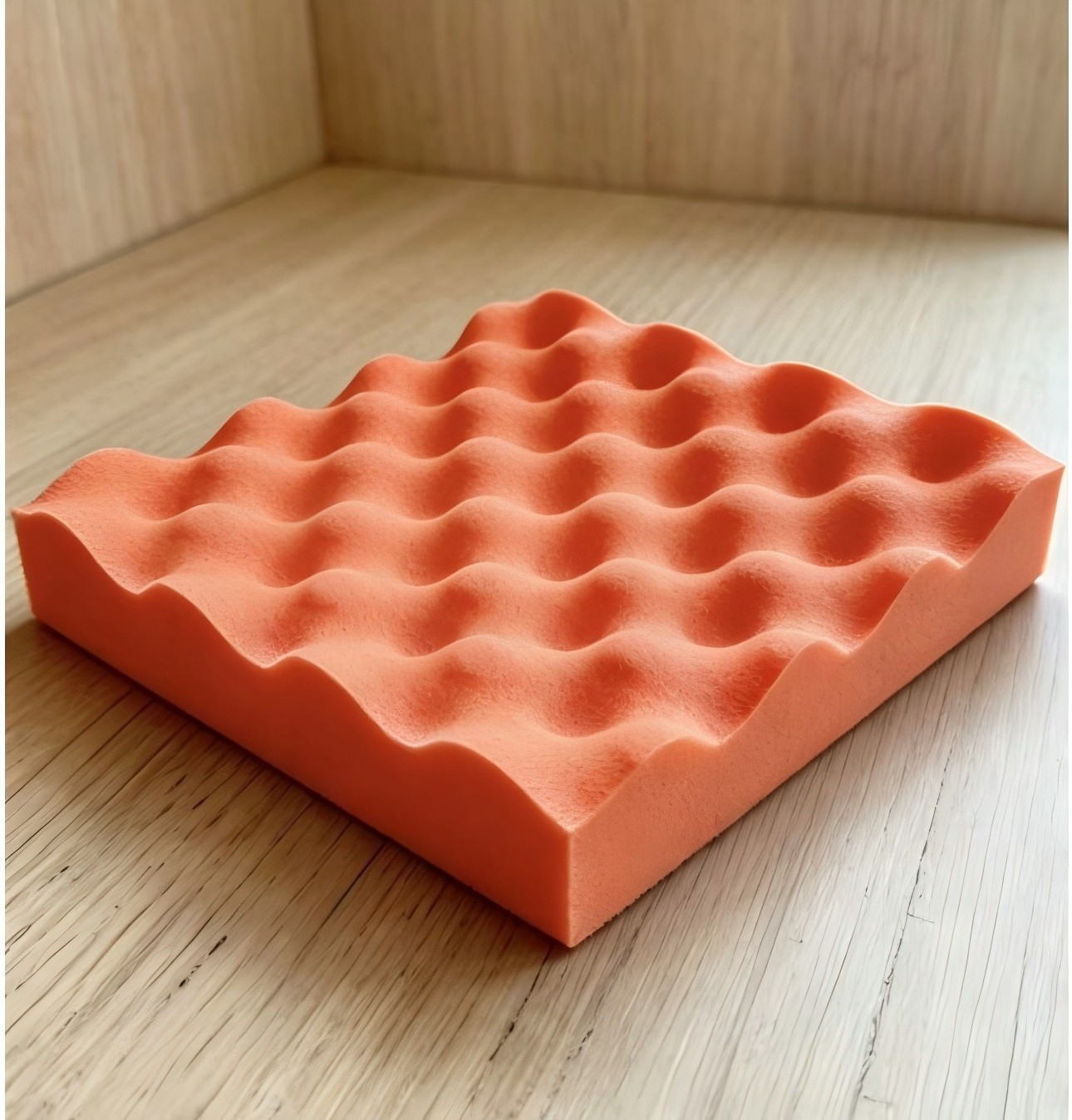

wAnika Acoustic 16mm PU acoustic underlay is a high-performance modified polyurethane closed-cell elastic mat independently developed by Clocell Acoustics, compiled material for national construction standard drawing. Manufactured from premium imported PU raw material with composite microcellular damping structure, this 16mm thick floating floor underlay is formaldehyde-free and zero TVOC emission, fully compliant with global green building & indoor environmental protection standards. One side is laminated with flame-retardant non-woven fabric to prevent cement mortar penetration during concrete pouring and avoid surface damage in construction.

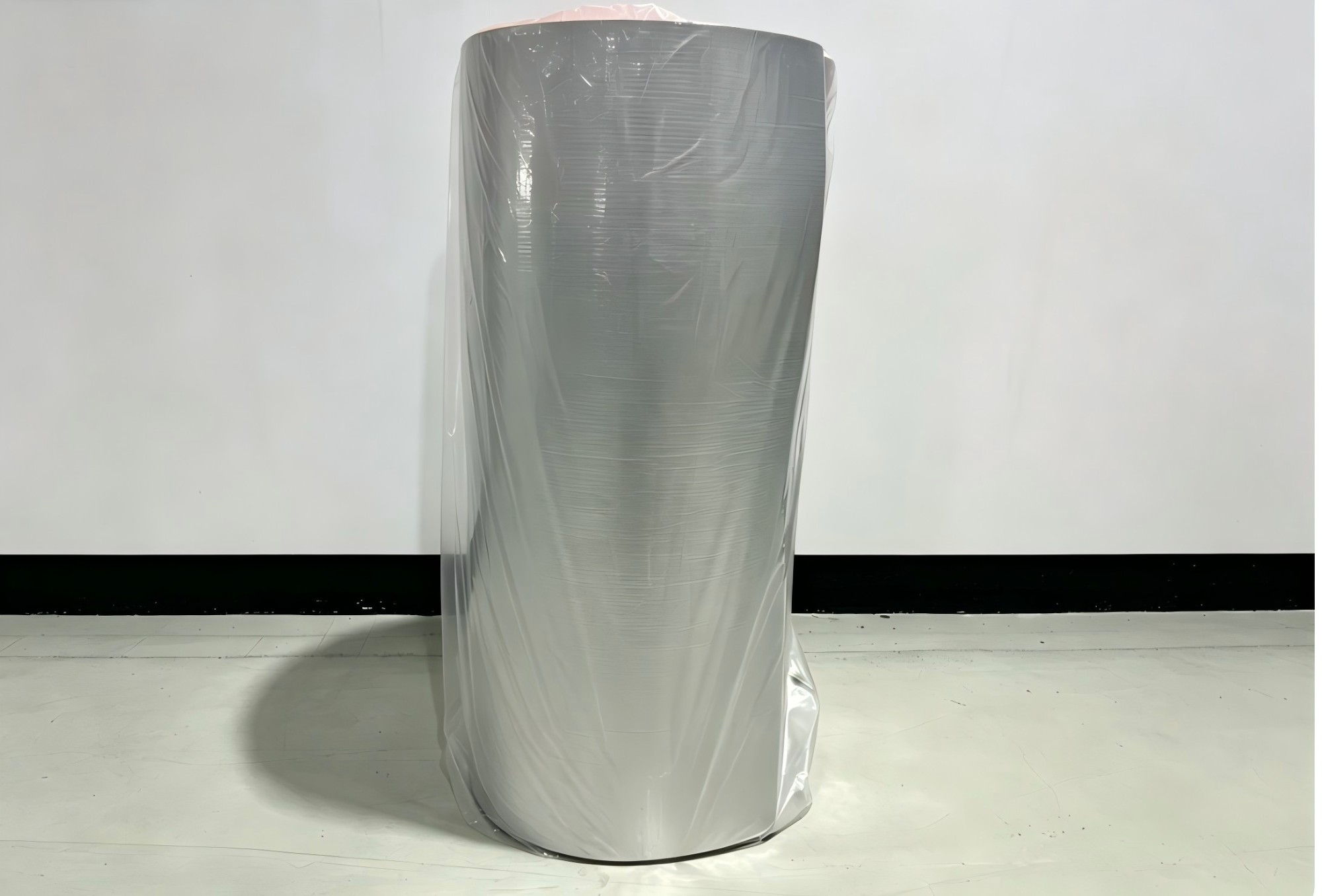

Available in standard roll size: 1m width ×10m length, customized dimension acceptable per client’s project demand. Widely adopted for floating slab system between bare concrete floor and screed layer to block structure-borne impact noise from footsteps, furniture dragging and heavy object falling.
16mm modified PU sound insulation underlay effectively cuts floor impact noise up to 32dB, long service life over 50 years, ideal for floating concrete slab, underfloor heating, apartment, hotel and renovation noise control projects.
Key Technical Performance Core Performance Data
Superior Sound Insulation Performance
-
Weighted impact sound improvement: △Lw=28~32dB; finished floating slab can reduce standardized floor impact sound below 52dB, far exceeding international residential noise limit standard, reaching high-end star hotel noise control grade.
-
Full-frequency vibration damping: efficiently eliminate low-frequency resonance noise at 100–500Hz and achieve over 30dB noise reduction for mid-high frequency sound at 2000–4000Hz, solving the annoying hollow thumping floor noise permanently.
Outstanding Mechanical Durability
-
Max bearing load: ≥2200kg/㎡, perfectly matching 40~60mm fine aggregate concrete screed casting for floor construction.
-
Low permanent compression set ≤4.8%, maintains stable elasticity after millions of compression cycles, service lifespan ≥50 years synchronizing with building structure service life.
-
Wide working temperature range: -30℃ ~70℃, compatible with underfloor heating system without shrinkage under high heat or hardening under low temperature.
-
Physical & Chemical Features
Waterproof, mould-proof, oil-resistant and non-water absorption, stable dimension in humid environment; high friction coefficient avoids sliding displacement after laying.
Product Advantages
Wide Application Scenarios
Residential Projects
High-end apartment, condominium, villa, renovated old house floor noise upgrading, underfloor heating flooring.
Commercial Projects
Star hotel, serviced apartment, nursing home, gymnasium, KTV, cinema, office building, school classroom floating slab sound insulation.
Auxiliary Vibration Isolation
Vibration pad for water pump, air-conditioner outdoor unit, ventilation fan and chiller; local floor noise reduction for piano, drum set and home treadmill installation.
5. Standard Installation Guidance
-
Clean the base concrete floor, remove protrusions and repair surface pits before laying.
-
Unroll Clocell 16mm PU mat tightly with tight joint between adjacent rolls, cover all seams with dedicated sealing tape.
-
Fold the mat upward 16mm alongside all perimeter walls to eliminate side acoustic bridge.
-
Pour 40~50mm fine aggregate concrete protective screed on top of the underlay.
-
Finish tile/wood/stone flooring after concrete full curing.
6. Product Selection Guide
16mm thick PU mat belongs to heavy-duty enhanced grade with better low-frequency noise insulation and higher load capacity compared with 3mm/5mm/10mm thin versions. Prioritize this specification for gym floor, underfloor heating construction, heavy-load commercial space and premium noise-sensitive residential projects. 8–10mm PU underlay is recommended for ordinary bedroom floor sound insulation.
-
